HEMPT-NG2

The HEMPT EV0 module

HEMPT EV0 module is composed of a thruster and a neutralizer compensating the resulting electric charge of the spacecraft.

The HEMP-Thruster Module for LEO applications

The HEMPT EV0 module (HTM EV0), is composed of a thruster (THR) and of a neutralizer (NTR) compensating the resulting electric charge of the spacecraft. THR integrates the magnetic system, the discharge channel, the anode, which performs the function of a gas distributer in the discharge channel too, the radiator, which as a part of mechanical interface. All necessary electrical connections are performed inside the module, in the rear part, with the heat-resistant cables.
These cables are electrical interface to the satellite systems or GSE. The gas interfaces are the anode and the cathode gas lines. The thermal design of HTM EV0 allows for an effective “no heat sink” to the satellite.

HTM EV0 operating anode power range is 200 W … 700 W, with the thrust up to 32 mN. HTM EV0 is capable to operate under anode voltages from 300 V to 800 V, reaching the Isp of 2000s. HTM EV0 operates efficiently both with gases Xenon and Krypton in the whole range of operating parameters

The HEMPT EV0 module (HTM EV0), is composed of a thruster (THR) and of a neutralizer (NTR) compensating the resulting electric charge of the spacecraft. THR integrates the magnetic system, the discharge channel, the anode, which performs the function of a gas distributer in the discharge channel too, the radiator, which as a part of mechanical interface. All necessary electrical connections ...

  • Lifetime on Xe was demonstrated with EV0 BBM to be in excess of 2000 h, without performance degradation..
  • HTM EV0 mechanical design has demonstrated the robustness through the vibration tests and the shock test.
  • HTM EV0 is successfully operated with the laboratory FCU, as well as with the BBM FCU, including the PSA EM.
  • HTM EV0 is successfully operated with the laboratory power supplies, with the PPUs (BBM) of different suppliers.
HEMPT-NG2

Methodology for Thruster Module

Before the start of HEMPT-NG2 we will start improving the design of the Neutralizer performance and cost wise in the frame of a DLR Project. We expect that during 1st year of HEMPT-NG2 useful results will get available and also alignment of interfaces will have to be conducted to arrive at a standardized product.
HTM EV0 module

The thruster integrates the magnetic system, the discharge channel, the anode, which performs the function of a gas distributer in the discharge channel too, the radiator, which as a part of mechanical interface. All necessary electrical connections are performed inside the module, in the rear part, with the heat-resistant cables.

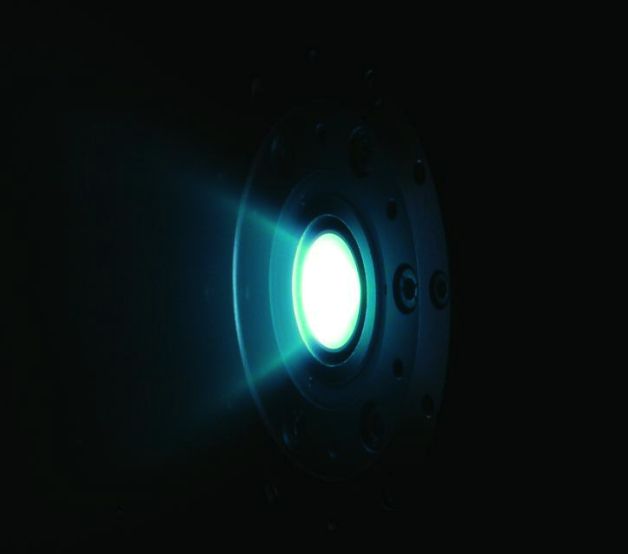

HTM EV0 module operating with Krypton

HTM EV0 operating anode power range is 200 W … 700 W, with the thrust up to 32 mN. HTM EV0 is capable to operate under anode voltages from 300 V to 800 V, reaching the Isp of 2000s. HTM EV0 operates efficiently both with gases Xenon and Krypton in the whole range of operating parameters.
